ODI Series 4 - Enter the Designer

Another blog and yes more ODI, today the designer comes in to play. The designer is where you perform the main integration work e.g. loading hierarchies from flat files or database tables into planning or transforming data before it is loaded into essbase. The designer stores all this information in the work repository.

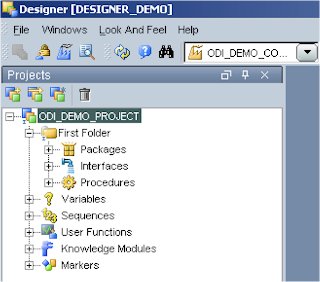

The main elements to the designer are models and projects; a model is a set of datastores corresponding to data structures contained in a physical schema. In a model you will perform the reverse engineering for instance reverse-engineering the dimensions and properties from a planning application into a readable column format. The RKM (Reverse Knowledge Model) for planning should have already been downloaded (see the first part of the ODI series to find out what you need)

A project is a group of objects developed using ODI, the components to a project are:-

Packages:- A package is a sequence of steps organized into a flow diagram, so say you wanted to wait for a file to arrive, load it into a planning dimension, push it to essbase and then send a successful or failure email then the package is the place for this.

Interface:- An interface is really a set of rules that define the loading of a Datasource from one or more source Datastores, an example of an interface is load members into planning dimension.

Procedure :- A procedure is a reusable component that groups operations that do not fit into the interface category, for example sending a batch of files through FTP.

Variable :- This is a value which is stored in ODI, this value can be set or evaluated to create conditions in packages, it is pretty much what you would expect a variable to be.

Sequence :- A sequence is a variable automatically incremented when used.

Knowledge Modules – I described these in Part 1 of this series so if you need a refresher just have a quick look back.

You will get a much clearer understanding of the different components as we start to use them.

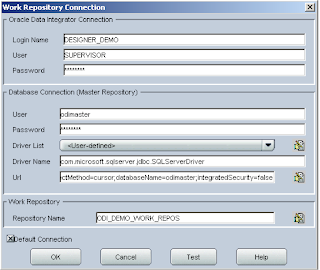

The first time you start the designer you will have to set up the connection to the master repository and work repository, you should be pretty used to this by now and I promise it is the last time you will have to do it. It is the same as when first set up the Topology manager.




The first objective I have set myself to achieve in the designer is to load dimension information from a flat file into the sample planning application, if you have been following then you will have already set up connection information to planning and to the flat file directory in the topology manager.

Before we start make sure you have extracted the KM files (Start KM_) from the impexp directory in the downloaded installation files

Oracle Data Integrator Adapter for Hyperion Planning Release 9.3.1.1 Installation files

KM_IKM SQL to Hyperion Planning.xml
KM_RKM Hyperion Planning.xml

Oracle Data Integrator Knowledge Module for Essbase Release 9.3.1.1 Installation files

KM_IKM SQL to Hyperion Essbase (DATA).xml
KM_IKM SQL to Hyperion Essbase (METADATA).xml
KM_LKM Hyperion Essbase DATA to SQL.xml
KM_LKM Hyperion Essbase METADATA to SQL.xml
KM_RKM Hyperion Essbase.xml

Extract them to %ODI_HOME%\oracledi\impexp

This is just so all the knowledge modules are stored in one place and simpler for importing.

Once you are in the designer, the first thing to do is create a new project.



You will notice most of the components I described earlier have been created.

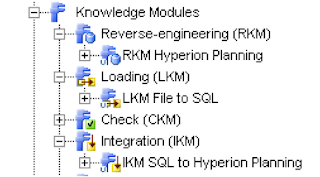

At the moment all we are going to do is import the required KMs, right click the project name (ODI_DEMO_PROJECT) and select Import Knowledge Modules. Select the folder %ODI_HOME%\oracledi\impexp and a full list of the KMs available should be displayed.

As the first objective is just to use a flat file and planning we will require the following KMs
RKM Hyperion Planning (reverse engineer the planning application)

LKM File to SQL (load data from a file to a temp area using SQL, the temp area is controlled by the Sunopsis memory manager)

IKM SQL to Hyperion Planning (move the data from temp area and load it into the planning repository using SQL)



You may have been wondering what the format of your flat file needs to be and this is where the RKM for planning comes in, setting up the RKM is done in the models area.

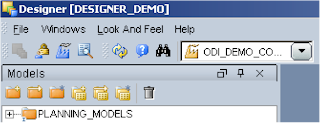

First you need to create a models folder, it is nothing more than a folder and lets you maintain your models. Click the Models tab then Insert Model folder (first button) and finally give it a name.



Next step is to insert a model, the first model to set up is a data store to hold all the reverse engineering of the planning app dimensions, when you insert the model you have to name it and choose the technology, in this case it will be Hyperion Planning, on selection the logical schema will be populated with the schema named you applied in the topology manager.

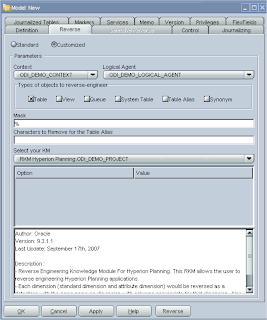

Now on to the reverse tab, this is where the clever KM will be used to reverse engineer the planning dimensions.
Select Customized; choose the context and Logical agent (all of these have been set up from the previous ODI blog)
Select RKM Hyperion Planning from the KM dropdown; it will have the project name appended to it.



Apply the changes and click Reverse and let the KM does its magic.

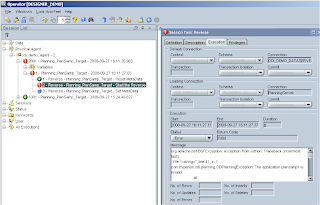

How do you know it has completed? Well a couple of ways, just watch task manager and wait for the CPU process to complete or officially look in the Operator, now you shout what the hell is the Operator. The operator is basically a GUI that displays the status of executions from ODI and are carried out through the use of the Agent.

I am not really going to go into any more detail about the Operator until later in the series when most of the integrations are complete, but for now you can access it from the start menu or directly from each ODI application, in the designer – Windows > Open Module > Operator.



So it looks like our reverse has completed successfully.



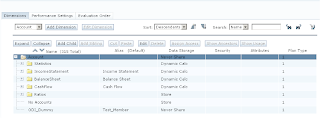

If you expand the model you see each of the available dimensions have been reversed and placed in a datastore with the same name as the dimension, there is also an extra store for the UDA.
At present you cannot reverse engineer or load to Year/Period/Version/Scenario that is just like HAL.

Just to point out I have a couple of occasions where the reverse says it has completed but not all the dimensions in the datastore have been populated, if this is the case just run the reverse again.

Expanding a datastore such as Account and then columns, the fields that can be populated will be displayed.



This is where is should start to click in your mind what you are trying to achieve, from a flat file you want to populate some of the above fields which will then be loaded into your planning app, which fields you populate is up to you but obviously Account (member)/Parent are required if you don’t populate the other fields then defaults will be used.

Most of the fields are self-explanatory and relate straight to planning, if you have ever used HAL they will be very familiar. If you have never used HAL then the one that stands out the most is the Operation field.

Operation can have the following values.

Update – This is the default and is used if not populated, it Add, updates, moves the member being loaded.

Delete Level0 - Deletes the member being loaded if it has no children

Delete Idescendants–Deletes the member being loaded and all of its descendants.

Delete Descendants–Deletes the descendants of the member being loaded, but does not delete the member itself.

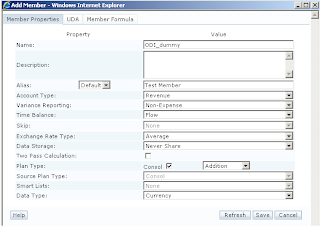

Just a slight deviation but I am just going to demonstrate what happens when you have not set up the connection to the planning app in the topology manager, I just renamed the planning app from plansamp to plansamp1 in the topology manager and ran the reverse again.



I have found with ODI that sometimes the error messages are pretty obscure, this one is one of the better ones “The application plansamp1 is invalid” gives you a rough idea, though this is the first opportunity that you have had to check you set up the connection correctly.


So now we have reversed our dimensions a csv hierarchy load file can be created. If you like you can just create a file with headings that relate to all the reversed fields.

For an example say I was going to add the following member as a child of account



The csv file would look like this :-


From this you should be able to build up a file to match your planning application pretty easily, once you have completed the file make sure you save it in the file store directory you set up in the topology manager, in my case “E:\FileStore\AccLoad.csv”

Now we have to create a model and datastore that will pick up the file.

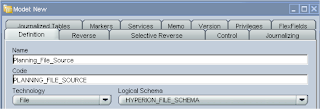

Choose File as the technology and choose the logical schema you created originally in the topology manager.

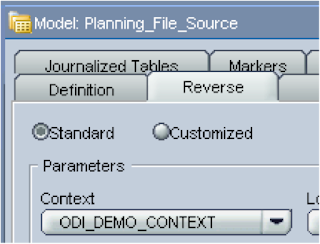

In the reverse tab select your context.



Insert a new DataStore and give it a name and if you click browse for file button it should open up in the correct directory and you can select the csv file.

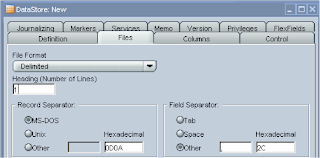

In the files tab as we are using a CSV file then choose Fie Format as delimited, the file has a header row so it was set to 1, the field separator was set to other and as a comma (,)

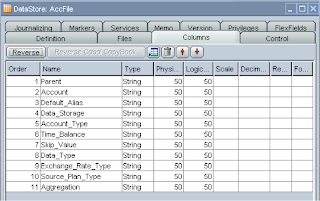

If you have been following this guide then you may have to go back into the topology manager as I forgot to set the JDBC options for the File set up, I have corrected the previous blog but this is what you need to make sure you have set.

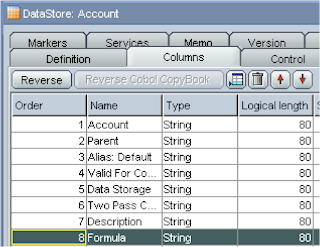

Back to the designer, click the Columns tab then the Reverse button and all being well the file structure should be retrieved.



One thing to watch out for if you are using formulas, the physical and logical length is set to 50 and formulas can easy surpass that so you will need to increase the length and in the reversed dimension column set up which is defaulted to 80.

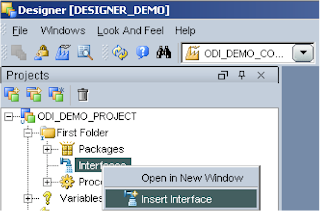

Ok we have created the source and target elements so now we have to put them together to bring them together and this is done by creating an interface, back to the projects tab and insert a new interface

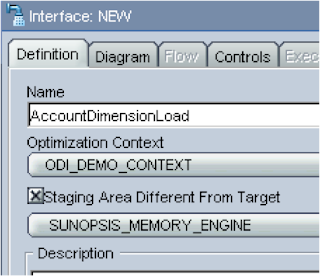

Give it a name and make sure the context is selected, next check “Staging Area Different From Target” and choose “SUNOPSIS_MEMORY_ENGINE”.

This allows any transformations between the source and target to be handled by the memory engine, an example being if you have a column header named TB in the source file and in the planning target it goes to Time Balance then the memory engine will handle this mapping.



On to the Diagram tab, this is where you drag and drop you source and target datastores, its certainly not the best graphically designed section and I remember thinking it was hideous the first time I saw it.

First drag you Account Flat file datastore from the models window into the source window and then drag the reversed account dimension datastore into the target window, select yes for the automatic mapping. What this will do is automatically map the column headings of your file to the target planning dimension, if you create the file with exactly the same headings as the dimension properties then you will have less work to do.

Anyway you should end up with this lovely looking organised window.



Just stretch the windows to make it more appealing and understandable.

Now we have to map the remaining source and targets, the ones that have been mapped will show as red in the source, btw the “S” in the source/target windows stands for String as all the fields we are using are String based. In the target window the members that have been automatically mapped will be displayed with an icon that stands for Source so basically meaning the source is the same as the target.

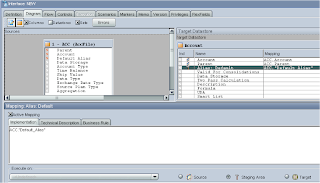

To map, click on a name in the target window, this should display the mapping window below, tick the “Active Mapping” box and in the implementation window enter the 3 digit name of the source and the column name, so for the Target of “Alias: Default” the implementation window will have ACC.”Default_Alias”, finally click the “Staging Area” button, as we need to use the sunopsis memory engine to perform the mapping.



If you like you don’t have to manually enter the name, you can click the “Launch Expression Editor” and select from the window.

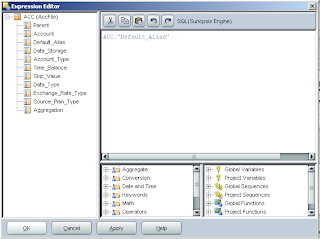

The expression editor has a whole raft of functions that can be used but you won’t probably use them for basic mappings.

The process needs to be repeated for the remaining source properties.



You can also force the value in the target mapping to be a fixed value, so say everything was going to be put against a “Source Plan Type” of Consol you wouldn’t need that in your source file and you can just enter the value into the mapping like so :-



If you are going to do this make sure the “Active Mapping” box is ticked and execute on the staging area is selected.

Once you have completed all the mappings click on the Flow tab and a diagram should be displayed outlining the process, if you click on the Target there are a number of options available like setting up error logging and the ability to refresh to essbase after the load has completed.



After applying changes you can execute the interface and the data in the file should be loaded into planning, you can check in the Operator to see how the process went.



You should also check the log files that were generated, you may see this is the log

2008-09-28 13:15:04,109 DEBUG [DwgCmdExecutionThread]: Number of columns in the source result set does not match the number of planning target columns.

I wouldn’t worry about the message, as it is not really an error.



In planning your member(s) should have been loaded.

So there we go we have completed the objective of loading information from a flat file into a planning dimension, from here you should be able to do the same for other dimensions.

I am going to wrap it up there for today, hopefully it all makes sense and you can go off and create your own load interfaces.

Next time I will look into loading data from a SQL table to planning and look at what can be achieved with ODI and essbase.

Sunday 21 September 2008

ODI Series Part 3 - The configuration continues

Part 3 has arrived and I can go through the remaining configuration elements inside the topology manager. The goal is to be able to load/extract hierarchy details from files and csv files and database tables into Planning and essbase, to do this we need to set up connection details to essbase , planning, sql database and a file store. It is going to be screen shot heaven today as sometimes it explains much than words can.

Fire up the topology manager and straight into the Physical architecture tab. I will go through each technology in alphabetical order so we start with the file set up.
If you going to write to or load from files in ODI you need a define a physical location, for this exercise the files are going to be in E:\FileStore

If you expand File you will see that there is already Data server created called FILE_GENERIC, I am going to ignore that and set up a new one.

Right click and “Insert Data Server”
(A physical component that stores and returns data is defined as a Data Server . A data server is always linked to a single technology.)



Give the Data Server a name



Added 28/09/08. For the JDBC tab you need to have the following driver settings :-



Once you hit apply the physical schema window will appear, this is where you enter details for the location of the files and set up the context details

An ODI Physical Schema corresponds to a pair of schemas:
• A (Data) Schema, in which Oracle Data Integrator will look for the source and target data
structures for the interfaces.
• A Work Schema in which Oracle Data Integrator can create and manipulate temporary work
data structures associated to the sources and targets contained in the Data Schema.

You need to manually enter the location into the Directory (Schema) and the Directory (Work Schema), most screens in ODI are default screens so no matter what technology you are using you will be presented with the same options, so don’t worry if you keep asking the question Why?

I have not found a requirement yet to use different values between the data and work schema.

There is no such functionality as browsing to the file location so make sure you enter the details correctly.



Next you need to point it to a context, setting up a context was covered in the last part. Add a new context, you will notice that the context that was set up earlier is populated as we made it default, if you have a number of contexts you can manually select a different one. Finally we need to provide a schema name where information will be stored in the repository.



Onto Essbase, I am going to set up a connection to Sample/Basic, it is pretty much the same as before only when you insert the data server you will have to enter the essbase server connection details.



One thing to be aware is not to hit the test button; this is only for use with JDBC connections so will fail for products like essbase/planning.

Filling in the physical schema is all manual, so don’t expect the drop downs to populate with applications and databases. This is one of the problems with ODI you never really know if you have got things right until later on because you can’t test and there is no auto populating.





Setting up the planning details is pretty much similar but you must put the RMI port next to the server details, the default port is 11333. I am setting up a connection to my sample application (plansamp).







The next technology to set up is a connection to a database so I can access and write to tables, for me it will be the Microsoft SQL Server technology but it is very similar for Oracle set up. I have set up a database called HypData. Once again it is pretty much the same sort of setup but this time you enter the JDBC connection details and yes you can even hit the test button.





As this time we are using a JDBC connection when you set up the physical schema you can don’t have to manually enter information the drop down boxes are auto populated, the only difference is you have to select the database name and the owner.



Create a name for the logical schema



Ok, the final technology we have to make changes to is the “Sunopsis Engine”, this is the technology that can be used when you are transforming data, so for example from a fields from a flat file and mapping to a planning fields.
The technology is already set up and you just have to point it the context to it



Well the configuration is done for what we trying to achieve, depending on how you are going to use ODI will no doubt increase the number of technologies you will use, it is a pretty powerful tool and we are just touching on the surface that may suffice for most users.

That concludes today’s session, next we will move on to the real centre of the product the designer, where we create the interfaces to move the data to and from planning/essbase.

Thursday 18 September 2008

Essbase 64bit ODBC quick fix

I thought I would just post a quick fix before I move on to the 3rd part of the ODI series, if you have ever installed essbase 9.3.1 64bit windows and try and use the merant ODBC drivers you will notice that no 64bit drivers don't seem to exist if you look in the Data source administrator.

If you look in the 32bit ODBC administrator you will see all the 64bit drivers, not much use them being there, somebody must of accidently sent them to the wrong place when creating the full proof and tested installation package.

If you look in the registry under HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\ODBC\ODBCINST.INI you will see the 32bit drivers mixed in with the 64bit drivers


The 64bit drivers should be in HKEY_LOCAL_MACHINE\SOFTWARE\ODBC\ODBCINST.INI
To fix the issue is no big deal all you need to do is add the correct parameters to the registry, so to create the parameters Merant 64bit Oracle Wire protocol just create a batch script:-


(sorry it as an image because it didnt format so well on the blog.)



Notice the last line you need this to associate driver with the driver details.
Just repeat for the drivers you want to use on 64bit.

Another way would be to export from regedit to .reg file, update the file to point to the new location and just run that.

Hopefully this maybe useful to anybody that encounters the problem.

Sunday 14 September 2008

ODI Series Part 2 - The Agent

Ok, so ODI is installed so we are now going to look at setting up an agent.

An agent is a java service that acts a listener on a designated tcp/ip port, the agent allows execution of sessions such as model reverses, packages, scenarios and interfaces, you will learn about more of these later.

You can set an agent up to run as a windows services or from a batch script, I am going to show both methods.

First of all you need to locate and edit the file odiparams.bat that resides in the ODI bin directory.



The section you need to update is after
rem
rem Repository Connection Information

rem


Update the Driver and URL to match your ODI repository you should be used to doing this now.
The username and password are account details for the Master repository, you notice you have to enter an encoded password, and there is a batch utility in the bin directory that will encode passwords for you.



Update the ODI_SECU_WORK_REP to match the name of your work repository that you set up in the topology manager.

You can leave the ODI_USER and pass alone if you have not changed the security for ODI.


To start the agent you will just need to create a simple batch script.


The port can be set to anything you like as long as you know it won’t conflict with anything else. Next add another script to stop the agent



Before you can start the agent a few more additional configurations are required in the topology manager.

First you will need to insert an agent and give it a name, enter the host and the port you defined in the batch script.



You can’t actually test yet as the agent is not running.

Next I am going to create a context, a context is basically a way of grouping different components together, so you can have say a development context which will bring together certain technologies, databases, applications and agents.
There is already a global context available but I like to always set extra ones up for flexibility, the context section can be accessed from the second tab



Finally a logical agent needs to be created which defines the link between the agent and the context.



Once this is completed you should be able to start up the agent.



Just to be sure the agent is actually working you can go back and test it from the topology manager.



Well that’s all well and fine but some people like to have everything running as a windows service, as long as you have updated the odiparams.bat then it is simple.




Just make sure you create the service with the same physical agent name and the same port as you set up in the topology manager.
You can check the service is running by opening the agentservice.log in the bin directory.

One thing to watch out for is that if you ODI_JAVA_HOME is set to a directory with spaces, if you are just using the default install then you will be fine otherwise you will need to add quotes to the java config in the odiparams.bat file.

set ODI_JAVA_EXE=%ODI_JAVA_HOME%\bin\java.exe
set ODI_JAVAW_EXE=%ODI_JAVA_HOME%\bin\javaw.exe

set ODI_JAVAC_EXE=%ODI_JAVA_HOME%\bin\javac.exe


To

set ODI_JAVA_EXE="%ODI_JAVA_HOME%\bin\java.exe"
set ODI_JAVAW_EXE="%ODI_JAVA_HOME%\bin\javaw.exe"

set ODI_JAVAC_EXE="%ODI_JAVA_HOME%\bin\javac.exe"


Once the service has been installed remove the quotes

Well that completes another session, next time I will looking at configuring the topology manager to point to a planning application, essbase database, file directory and sql database tables before we move on to the designer.
