The 19.05 EPM Cloud release brought new functionality into Data Management which provides the ability to set workflow modes. The documentation provides the following information on the workflow modes.

“By default, the data load process in Data Management is designed with a well-defined process flow that provides a full audit of the data load process and the ability to drill down and view data in Workbench. However, a full data flow may contribute to lengthy processing times due to archiving of data for audit purposes. Workflow mode options provide scalable solutions when processing large volumes of data, or when an audit is not required and performance is a key requirement.”

So basically, if you are not interested in viewing/downloading data from the workbench or drill through functionality and are looking for improved performance then maybe the workflow options can help.

I am not going to go into great depth, but behind the scenes the process flow of data in Data Management is all built around relational database tables and many SQL statements, no doubt you have noticed them in the process logs and increasing the log level will output in much more detail the SQL that is being executed at each step of the process. There are lots of different database tables involved which I am not going to bore you with, for this post all that you need to understand is that data flows through a staging table called TDATASEG_T where mappings are applied and ends up in a table called TDATASEG, the data that is viewable in the workbench is from the TDATASEG table. There is also a staging table for mappings called TDATAMAP_T which are archived in table TDATAMAPSEG.

The three available workflow mode options are:

Full
Full (no archive)
Simple

Something to be aware of is these options can currently only be defined at target application level.

The “Full” option is the default and it is the workflow mode you will be used to, there is no change to this and data flows in exactly the same way through the staging tables and can be viewed in the workbench. Drill through functionality is available if required.

If the logging level has been increased to 5, then in the process log you will see after the import and validate stage the data being moved from the staging table TDATASEG_T to TDATASEG.

DEBUG [AIF]: INSERT INTO TDATASEG (columns)
SELECT columns
FROM TDATASEG_T
WHERE LOADID = x AND PARTITIONKEY = x AND CATKEY = x AND PERIODKEY = 'YYYY-MM-DD'

The mappings that have been applied are also archived.

DEBUG [AIF]: INSERT INTO TDATAMAPSEG (columns)
SELECT columns
FROM TDATAMAP_T
WHERE LOADID = x

Before looking at the other workflow modes it is worth picking up on the point that the mode can only be defined at target application level. To minimise the impact to any existing integrations and to separate the different workflow modes it is possible to add a duplicate target application.

The same application can be selected, and a prefix applied.

A duplicate application will then be available.

The workflow mode can be defined for the duplicate application.

So, let us have a look at the “Full No Archive” workflow mode.

This mode operates in the same way as the full mode until the export stage. If you run an import the same process will be followed, after validation the data can be viewed in the workbench.

At this point the data is still being held in the TDATASEG table. After an export has been successfully executed the data is no longer available in the workbench.

In the process log there are entries to show that data has been deleted from the TDATASEG table.

INFO [AIF]: Executing delete statement:
DEBUG [AIF]: DELETE FROM TDATASEG WHERE LOADID = x
INFO [AIF]: Successfully executed delete statement
DEBUG [AIF]: Number of Rows deleted from TDATASEG: x
DEBUG [AIF]: CommData.deleteData – END

Now this workflow mode is not going to offer any direct performance benefits, but it does keep the space used and size of the TDATASEG table down to a minimum as data is deleted at the export stage. This mode is not going to be of any use if you want to view the data or keep for audit purposes and you do lose out on drill through functionality.
Moving on to “Simple” workflow mode which is where the performance improvements should be seen.

The simple option does not move the data from the staging TDATASEG_T table to TDATASEG and after the mappings have been processed in the TDATAMAP_T staging table they are not archived in the TDATAMAPSEG table.

As the data does not exist in the TDATASEG table then after the import and validate stage completes the data cannot be viewed in the workbench. This also means any auditing or drill through capabilities have been lost.

There is also a slight difference as well in the export stage. With the default full workflow mode, data is extracted from the TDATASEG table using a database view.

DEBUG [AIF]: SELECT '"'||ACCOUNT||'"','"'||ENTITY||'"','"'||UD1||'"','"'||UD2||'"','"'||UD3||'"','"'||SCENARIO||'"','"'||YEAR||'"','"'||PERIOD||'"',AMOUNT
FROM AIF_HS_BALANCES
WHERE LOADID = x

As already stated the simple workflow mode does not load data into to the TDATASEG table and it persists in the TDATASEG_T staging table, this means the same view cannot be used.

From the logs it looks like another database view has been created which must extract data from the staging table.

DEBUG [AIF]: SELECT '"'||ACCOUNT||'"','"'||ENTITY||'"','"'||UD1||'"','"'||UD2||'"','"'||UD3||'"','"'||SCENARIO||'"','"'||YEAR||'"','"'||PERIOD||'"',AMOUNT
FROM AIF_HS_BALANCES_T
WHERE LOADID = x

Notice the database view name is suffixed with “_T” which indicates it will be looking at the staging table.

Please note: When using the simple workflow the full import and export has to be run in the same process. This means you should not use the workbench to load data when using the simple mode.

If you execute from "Data Load Rule" then the import and export will only be allowed together.

If you don't do this then the export to target will not contain any data.

So how about timings, is the simple mode much faster than full mode?

For a simple test I took an import file containing 1 million unique records of data. I ran the full import and export process for a single period for both full and simple modes. The time was taken from the start of the process up until the data was to be loaded to the target application.

Full mode = 10 minutes 52 seconds
Simple mode = 6 minutes 14 seconds

For a single period that is nearly a 43% improvement

I then ran the same test for 12 periods which means 12 million records were processed. I do have serious issues with the default way that multi periods are processed, instead of the data load being treated as one, each process is repeated for each period which is extremely inefficient. Hopefully one day this will be addressed.

The timings were:

Full mode = 2 hours 43 minutes
Simple Mode = 1 hour 11 minutes

From the timings you can see it certainly does make a big difference for multi periods. Though it does beg the question to why it took around 10 minutes to process a single period but 2 hour 43 minutes for 12. In theory it would be quicker to run each period individually.

I had to base the above timings up to the point where the data file is generated at the export stage, this is because the process failed with an Oracle database timeout error: “ORA-00040: active time limit exceeded - call aborted”. Unlike on-premise FDMEE it is not possible to change the data load options to a SQL based load which loads directly to the target application instead of creating a file first before loading.

To further improve performance, you could also look at using expressions which I covered in a previous blog.

It has been a quiet year up to now for new functionality in EPM Cloud, but that has all changed with the 19.05 release. In this post I am going to concentrate on the new features that have made their way to the REST API and EPM Automate.

There are new REST API jobs to import and export security, export audit records and the job console, and finally the ability to sort dimension members. Not all of these are available in EPM Automate yet but no doubt they will be included in future releases.

In the post I am going to go through each of the new REST resources, providing an example using a REST client and a simple script which can easily be updated for the different job types. I have covered the REST API many times in previous posts, so I am going to assume that you understand the basics.

Let us begin with the resources that I feel will be most welcomed – the ability to import and export access permissions. If you would like detailed information on access permissions, please refer to the documentation.

All the new REST API functionality is available through the jobs resource, which uses a post method and has the URL format of:

https://<epm_cloud_instance>/HyperionPlanning/rest/v3/applications/<application_name>/jobs

The body or payload of the REST request is where the job information is defined using parameters.

So, let us take an example of exporting access permissions, this can simply be achieved with the following:

The “jobType” parameter for exporting access permissions should be “Export Security”

The “jobName” parameter can be anything relevant, it is just the name that is going to be shown in the job console.

The “filename” parameter is optional, if it is not supplied, a CSV file will be created with a name containing the administrator who ran the request, description and current date/time.

Once you have the basic authentication details you are ready to execute the request.

After the request has been executed, a response will be returned containing all the job information.

A status of -1 indicates the job is in progress, to keep checking the job status, a get request can be made which includes the job ID.

This time the job has completed, and the export was successful. You can see that the filename I provided has been automatically generated as a CSV file.

The file is available within the EPM Cloud instance and can be seen through the UI in the inbox/outbox explorer.

If I had executed the REST request without the filename parameter:

The file would have been generated with the following naming convention:

The file can be downloaded from the UI or by using EPM Automate or using the REST API, an example being:

As the file is a CSV type, it can be opened and viewed in a much more readable format through Excel, or a similar application.

Most of the headings should be self-explanatory, the name column is the name of the user or group, the “Is User” column defines whether it is a user or a group.

The object type is an artefact within the application and can be any of the following:

SL_FORM – Form
SL_COMPOSITE - Composite Form
SL_TASKLIST – Tasklist
SL_CALCRULE – Rule
SL_FORMFOLDER - Form Folder
SL_CALCFOLDER - Rule Folder
SL_DIMENSION – Dimension
SL_REPORT – Financial Report
SL_REPORTSSHOT – Financial Report Snapshot

The access type is the type of access permission, this can be: NONE, READ, WRITE, READWRITE or LAUNCH

The access mode is the inheriting access permission, this can be: MEMBER, CHILDREN, @ICHILDREN, @DESCENDANTS or @IDESCENDANTS. The documentation provides further details on the these.

I will provide details on the “Remove” column later in this post.

In the previous example the access permissions were exported for all users and groups. It is possible to restrict the export to specified users or groups.

To export access by group the “exportGroups” parameter can be used and assigned with a list of comma separated groups.

The above example will export access permissions for only the “Analyst” and “Reviewer” groups.

To export access permissions by user, the “exportUsers” parameter can be used and defined by a list of comma separated users.

The above example exports security for a single user.

To automate the process of exporting the access permissions, you can easily convert this into script. Most programming languages support REST in some form so pick the one you feel most comfortable with.

In the following PowerShell script, a REST request is made to export access permissions for a group named “Planner”.

Once the REST request has been made the status can be repeatably checked until it changes from progressing.

Finally, a separate REST resource can be executed to download the file from the EPM Cloud instance.

The file that has been downloaded contains the access permissions for the “Planner” group.

The script can be modified to work with any of the REST API job resources contained in this post.

Moving on to importing access permissions and I will start off with a CSV file that defines permissions for a user and group.

The “Planner” group will be defined with read access to the form folder “Long Range Plan”.

The user will be granted read/write permissions to the “Total Entity” member and all its descendants.

To demonstrate the “Total Entity” member has no user access defined.

The “Long Range Plan” form folder has no group access defined.

The CSV file must first be uploaded to the Cloud instance and this can be achieved using a REST resource, an example being:

Once the request has been successfully executed the file should be available in the Cloud instance.

The access permissions can then be imported using the REST resource with the same jobs URL and post method.

The “jobType” is “Import Security. The “jobName” can be anything relevant.

Just like with the export security resource the “filename” is optional.

Once the request has been sent, a response containing the job information is returned.

This can then be checked by including the job ID in the URL.

The import failed as the filename was incorrect. The filename is case sensitive, and I incorrectly set the first character as upper case.

After rectifying the filename, the import was successful.

The response includes the details of how many records were imported and if any were ignored.

To confirm the import, the form folder was correctly assigned with the group.

The member permissions were assigned to the user.

It is possible to remove access permissions, and this can be achieved by setting the value in the remove column to “Y”.

In the following example I am going to remove access to the “Planner” group for the member “BS”.

Currently access has been assigned to the group.

The CSV file was uploaded, and the access permissions imported using the REST resource.

The response confirms 1 record was successfully imported.

Checking in the UI confirms the access permissions have been removed for the group.

On to the next REST resource and that is the ability to export audit records. Please note that you will have to enable auditing in the UI if you have not already done so.

Once again, the URL and method are the same.

The “jobType” parameter should be “Export Audit”. “JobName” can be anything relevant you decide on.

The “filename” parameter is optional. If it is not included in the body of the request it will be generated in the same format as previously explained, the only difference is the filename will include “AuditRecords”.

The “ndays” parameter defines the number of days which audit records should be exported. The values can be 1,2,7,30,60,180 or All. If not included the default is 7 days.

Once the request has been sent the audit records will be exported and a zip file produced which can be downloaded.

The zip file contains a csv file with the same name.

The CSV file is in the same format as that viewed in the UI.

It is possible to export audit data for specified users.

The “userNames” parameter can contain a comma separated list of users.

The generated CSV file will contain only audit records for the specified user(s).

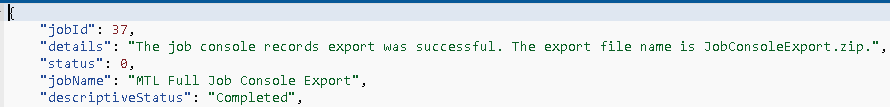

Next REST resource allows the export of the job console information.

The “jobType” should be “JOBCONSOLE_EXPORT”. Define “jobType” to anything you want.

Again the “filename” parameter is optional. If it is not included in the body of the request it will be generated in the same format as previously explained, the only difference is the filename will include “PlanningJobConsoleRecords”.

Just like with the other resources the job can be repeatedly checked until the status changes.

A zip file will be created which can be downloaded using either the UI, EPM Automate or REST API.

Unless specified with parameters in the body of the REST request the only job console information exported will be for rules and with a completed status.

By default, 7 days of job console information will be exported. This can be changed using the “ndays” parameter. The possible values can be 1,2,7,30,60,180 or All.

You can define the job types included in the export with the “jobTypes” parameter. This can be a comma separated list, please refer to the documentation for the full list.

In the above example, job console information will be exported for all records and job types.

To export the job console information for importing and exporting security the following parameter can be defined in the body of the request.

This will produce a CSV file with job console information for only import and export security jobs.

It is possible to restrict the export to the job name.

In this example the job console information is only exported for jobs that have been named “MTL Import Security” and “MTL Export Security”.

By default, only jobs with a completed status are exported. This can be changed by using the “jobStatusCodes” parameter and a list of comma separated codes.

The possible values are:

1 Processing: Current jobs under execution
2 Completed: Successfully completed jobs
3 Error: Jobs failed with errors
4 Unknown: Jobs completed with unknown status
5 Completed with Threshold Violation: Jobs completed with threshold violation status
6 Pending Cancel: Jobs with Pending cancel status
7 Cancelled: Cancelled jobs
8 Completed with Errors: Jobs completed with errors
9 Completed with Warnings: Jobs completed with warnings
All Export the jobs with any status

In this example, job console information has been exported only for jobs that have errored.

In the zip file that is produced there is a folder called “errorlogs”.

This contains additional error files that match by job ID.

So for the job ID 18 the error file includes the following information.

If the error files are not required, the “exportErrorDetails” parameter can be used with a value of “false”.

This means the folder in the zip file will not include the error files.

On to the final new REST API resource and this allows dimension members to be sorted.

The same jobs URL and method are used.

The “jobType” should be “Sort Members” and the “jobName” can be set to anything relevant.

The “member” parameter is the parent member whose children or descendants are being sorted.

By default, the sort will be applied to the children of the specified member and in ascending order.

The above example will sort all the children of member “SortMe” in ascending order.

Just like with all the other resources the job status can be checked.

The children of “SortMe” have been sorted in ascending order.

Now let’s add some children to the “Z_Product” member.

The body of the REST request has been updated to include the “order” and “type” parameters.

The descendants of member “SortMe” have been sorted in descending order.

This sort functionality has also been added to EPM Automate with the “sortmember” command.

As you would expect it is very simple to use and the command has the following syntax.

The following will sort the descendants of the member “SortMe” in ascending order.

I didn’t need to include the “order” parameter as the default is to sort in ascending order.

Another new command to be introduced into EPM Automate allows the application to be put into administration mode or returned to all users.

This functionality has been available in the REST API for a while, I covered this in a previous blog which you can read about here.

The new EPM Automate command is named “ApplicationAdminMode” and only requires either “true” or “false” to be included.
